Servo Motor Energy Saving YZ32 Series Four Pillars Hydraulic Press Machine For Metal Blanking
Features
1. Hydraulic machine that used the hydrostatic pressure to process metal, plastic, rubber, wood, powder and other products .
2. It is commonly used in the pressing process and press forming process, such as: forging, stamping, cold extrusion, straightening, bending, flanging, sheet metal deep drawing, powder metallurgy, press-fit etc.
3. Significant technical and economic advantages in reducing weight, reducing the number of parts and the number of molds, improve the stiffness and strength, reduce production costs, etc.

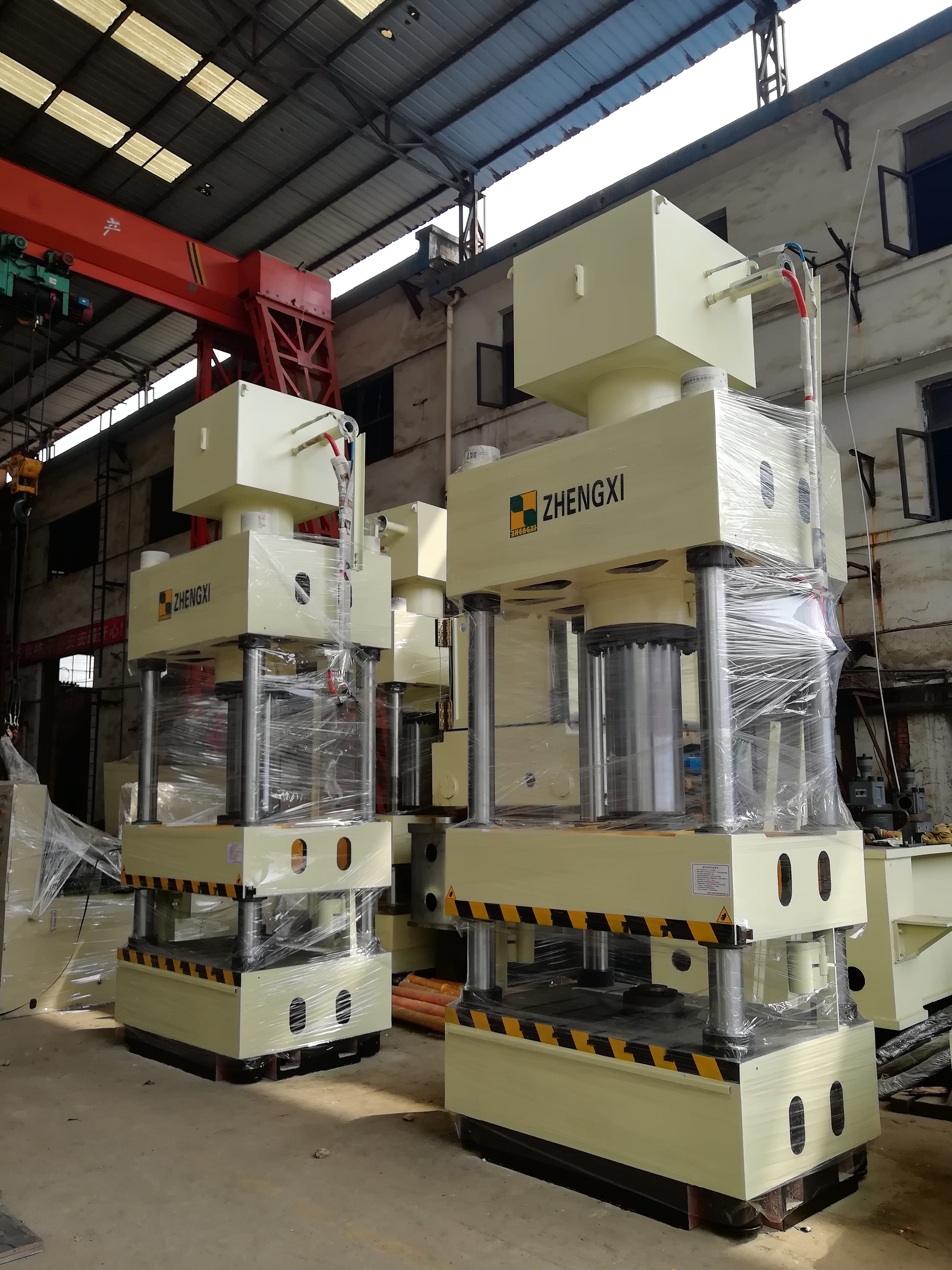

Servo Motor Energy Saving YZ32 Series Four Pillars Hydraulic Press Machine For Metal Blanking by ZHENGXI
Optional accessories: moving bolster; slider proportional adjustment and pressure regulating device; hydraulic pad proportional pressure regulating device; punching buffer device; light curtain safety protection device; oil heating or cooling device; touch industrial display; Sensing device; floating guide and rolling bracket for mold change; non-recoverable column lubrication device; mold lighting.
Characteristics
-
It is characterized by computer finite element analysis and has good rigidity and high precision.
-
Four-corner and eight-sided guide rails with high guiding precision and strong anti-offset capability;
-
Imported material cylinder sealing components, high reliability and long service life;
-
Empty, fast, and improve production efficiency;
-
The use of displacement sensors or non-contact switches improves the reliability and accuracy of the stroke control;
-
Machine, electricity and liquid integrated safety device, equipped with cylinder lower chamber support circuit, cylinder upper and lower chamber interlocking circuit, etc., with superior safety performance.
-
With PLC control, the work is sensitive and reliable, and the flexibility is good.
Parameters of Servo Motor Energy Saving YZ32 Series Four Pillars Hydraulic Press Machine For Metal Blanking
| | Item | Unit | Value | Remarks |
| 1 | Name of Equipment | | Hydraulic Deep Drawing Press |
| 2 | Structure | | H Frame Type |
| 3 | Model Number | | Yz32-1500T | |
| 4 | Capacity | KN | 15000 KN | |
| 5 | Slide Stroke | mm | 1200 | |
| 6 | Daylight | mm | 2300 | |
| 7 | Worktable | L-R | mm | 3600 | |
| F-B | mm | 2400 | |
| 8 | Cushion Capacity | KN | 3000 | |
| 9 | Cushion Stroke | mm | 0-400 | |
| 10 | Cushion Size | L-R | mm | 2600 | |
| F-B | mm | 1400 | |
| 11 | Cushion Eject Speed | mm/s | 50 | |
| 12 | Cushion Return Speed | mm/s | 60 | |
| 13 | Slide Speed | Idle Down | mm/s | 40-200 | |
| Press | mm/s | 3～15 | adjustable |
| Return | mm/s | 40-200 |
